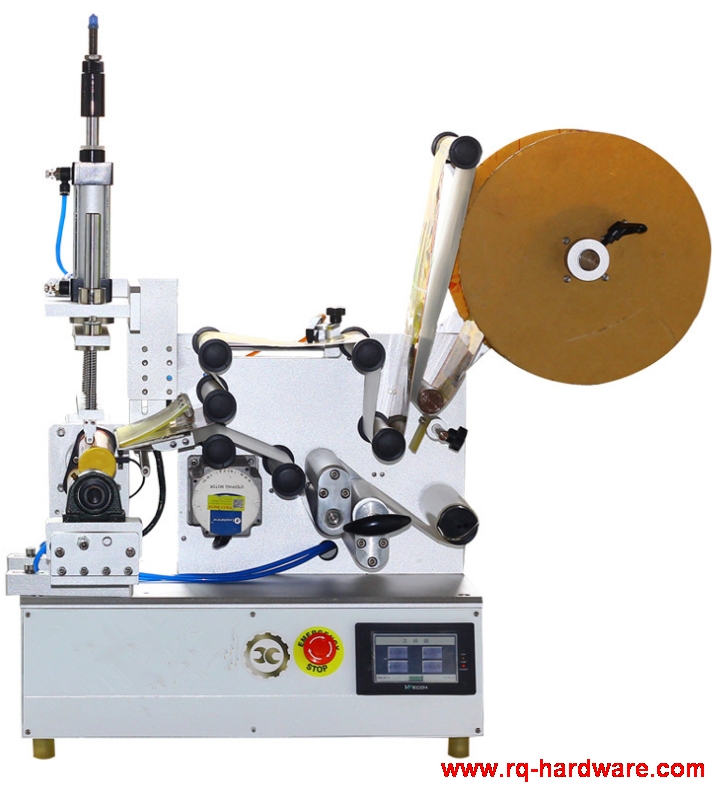

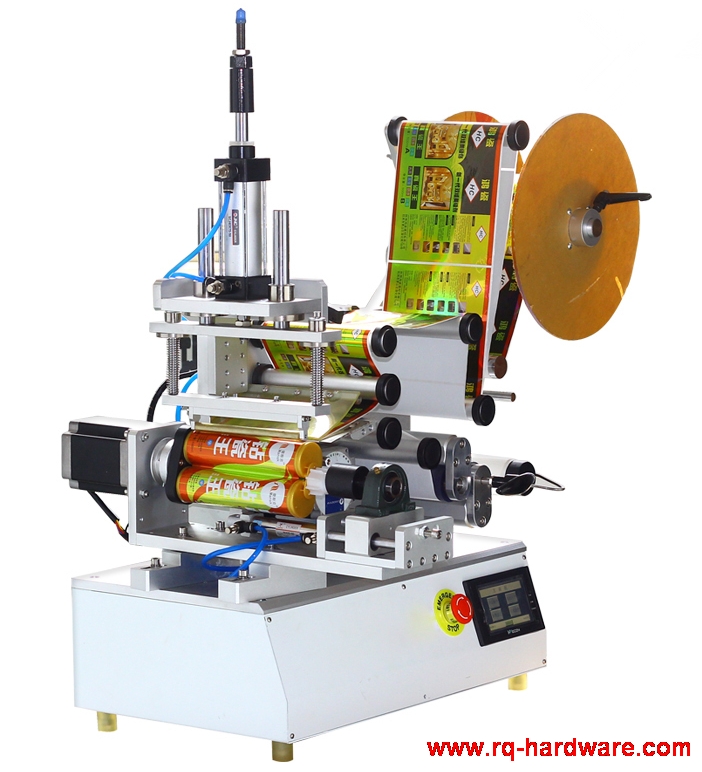

400ml 1:1 Two Component Cartridge Labeling Machine
Labeling accuracy:±1mm (not includes the cartridge and labels size tolerance);
Labeling Speed: 15~25pcs/min(depends on cartridge size);

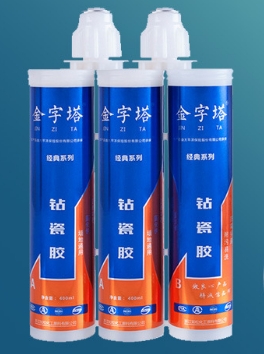

Available cartridge size:L:20mm~200mm W:20mm~150mm T:0.2mm~120mm
Available label size:L:15mm~150mm W:15mm~130mm
Overall dimension: 850mm×700mm×800mm(L×W×H);
Available voltage: 220V/50HZ;(other voltage can be customized);
Weight:About 41Kg
Main organization configuration
Main electrical configuration
Name
QTY
Main Material
Name of Electiry
QTY
Model
Label roll Setting
1 SET
Aluminum alloy, acrylic
label test electric eye
1 SET
Germany SICK
Label press
2 SET
Aluminum alloy, Manganese sheet
PLC
1 SET
Panasonic FP
Pull
1 SET
Manganese sheet, rubber-covered roll, steel
Pulling motor
1 SET
Leisai 86 Step motor
Sucker
1 SET
Aluminum alloy, foam
Drive for Pulling motor
1 SET
Leisai Step motor
Label guider
5 SETS
Aluminum alloy
Cylinder
1 SET
CPC Cylinder
Label peel
1 SET
Stainless steel
Touch screen
1 SET
Samkoon colorful touchscreen
Label roll winding
1 SET
POM, stainless steel, acrylic
Rolling motor
1Set
Leisai 86 Step motor
Electric box
1 SET
Painted sheet metal
Drive for rolling motor
1SET
Drive for Leisai Step motor
