Horizontal 300ml Silicone Plastic Cartridge Sticker Labelling Machine
  • Horizontal 300ml Silicone Plastic Cartridge Sticker Labelling Machine
  • Horizontal 300ml Silicone Plastic Cartridge Sticker Labelling Machine
  • Horizontal 300ml Silicone Plastic Cartridge Sticker Labelling Machine
  • Horizontal 300ml Silicone Plastic Cartridge Sticker Labelling Machine

Horizontal 300ml Silicone Plastic Cartridge Sticker Labelling Machine

Horizontal 300ml Silicone Plastic Cartridge Sticker Labelling Machine
Detailed description

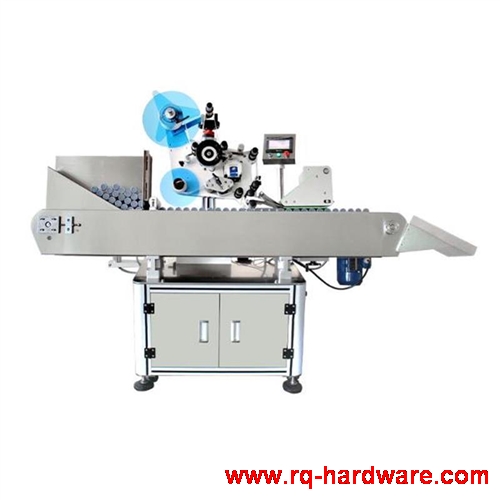

Horizontal 300ml Silicone Plastic Cartridge Sticker Labeling Machine

Introduction

 The automatic labeling machine for round bottles uses non-drying film drum labeling paper,cylinder clamping method is adopted for labeling,automatic bottle-dividing,bottling and labeling at one time,this machine is controlled by Mitsubishi PLC and tracked synchronously,label feeding is controlled by stepping motor,ensure the synchronization of feeding speed and bottle rolling speed.The self-adhesive labeling machine has the advantages of clean, sanitary, mildew-free, beautiful, firm after labeling, no self-shedding and high production efficiency.


Technique Data

Voltage (V/Hz)  AC 220/50  or customized
Whole machine power (W) 1200
Available bottle ranage (mm) Dia 30-100mm  height 30-200mm
Available label range (mm) Height 15-130mm
Output (pcs/min)  30-35
Overall dimension(L×W×H)(mm)  2000×900×1400
N.W(kg) 350

Main Configuration List
Item Origin Brand
PLC Japan Mitsubishi
Touch screen Taiwan WEINVIEW
Motor China Stepping motor
Photoelectric calibration Germany sick
Frequency Guangzhou Coreken
