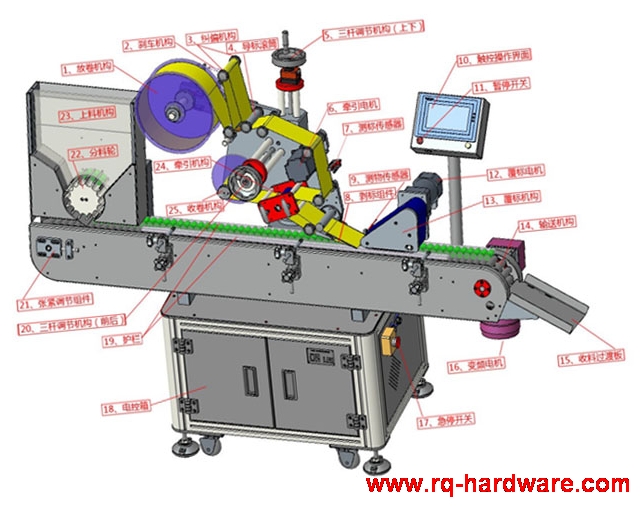

Automatic Labelling Machine for 300ml Silicone PU Sealant Cartridge
Introduction
The automatic labeling machine for round bottles uses non-drying film drum labeling paper,cylinder clamping method is adopted for labeling,automatic bottle-dividing,bottling and labeling at one time,this machine is controlled by Mitsubishi PLC and tracked synchronously,label feeding is controlled by stepping motor,ensure the synchronization of feeding speed and bottle rolling speed.The self-adhesive labeling machine has the advantages of clean, sanitary, mildew-free, beautiful, firm after labeling, no self-shedding and high production efficiency.
Technique Data
| Voltage (V/Hz) | AC 220/50 or customized |
| Whole machine power (W) | 1200 |
| Available bottle ranage (mm) | Dia 30-100mm height 30-200mm |
| Available label range (mm) | Height 15-130mm |
| Output (pcs/min) | 30-35 |
| Overall dimension(L×W×H)(mm) | 2000×900×1400 |
| N.W(kg) | 200 |
Main Configuration List
| Item | Origin | Brand |
| PLC | Japan | Mitsubishi |
| Touch screen | Taiwan | WEINVIEW |
| Motor | China | Stepping motor |
| Photoelectric calibration | Germany | sick |
| Frequency | Guangzhou | Coreken |
Automatic Bottle Unscrambler
It's suitable for round bottle automatic convey, such as connect with filling machine, labeling machine, capping machine, automatic bottle feeding, increase the output.
Applicable bottle range can be adjusted freely,the conveying bottle speed is 30~80pcs/min,speed can be adjusted sleeplessly,convenient for production arrangement.
Features
1.feeding ,collection and arrangement of products to reduce labor intensity and improve efficiency.
2.The structure is relatively simple, stable and reliable.
3.Working process:
The rotary table of bottle unscrambler drive the product to rotate automatically,the product is close to the edge of the turntable under the fluctuation of the dial plate of the bottle,the orderly export of products along the bottle groove of bottle unscrambler.
Technique data
| Dia for rotary table | 800mm |
| Overall Dimension | 1000*900*1300mm |
| Voltage | 220V/50Hz or customized |
| Motor Power | 0.37KW |
| Weight | 65KG |
| Available range | dia:φ20mm~φ100mm height:20mm~250mm |
